儀器簡介：

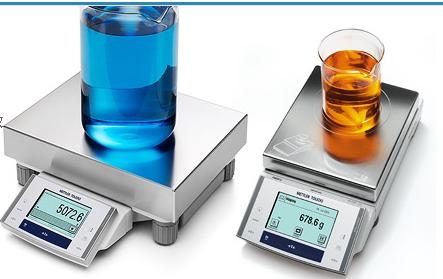

XS超越系列專業型精密天平是專為提高稱量效率而設計，體現了前所未有的速度、可靠性和操作便利。
* 采用高速單模塊稱量傳感器（MonoBlocHighSpeed），以最快速度傳遞準確稱量結果，具有良好的抗沖擊、抗過載性能。
* 全自動校準技術（FACT）——溫度漂移觸發的自動內部校準，確保稱量結果的準確性。
* 觸摸顯示屏（Touch screen），方便天平稱量菜單和參數設置。
* 具有狀態顯示的外置紅外感應器選件（ErgoSens），實現天平無需用手接觸的操作。
* 內置RS232通訊接口和靈活的6種通訊接口選件（RS232、LocalCan、BTS、PS/2、Ethernet和MiniMettler），方便連接打印和電腦等外圍設備。
* 優化天平適應性的稱量參數設置，滿足不同稱量環境要求。
* 具有簡單稱量、統計稱量、公式稱量、計件稱量、百分比稱量、密度測定以及優化的動態稱量等內置應用程序。
* 通過E-Loader軟件，實現天平軟件的即時更新
規格 - XS10001S 精密天平
|
物料號 (s) |
11130193 |
|
商業名稱 |
XS8001S/A,XS8001S/M |
|
極限值 |
|
|
最大稱量值 |
0 .. 10.1 kg |
|
可讀度 |
100 mg |
|
重復性 |
80 mg |
|
線性誤差 |
100 mg |
|
靈敏度偏移（測試加載） |
500 mg (10 kg) |
|
典型值 |
|
|
重復性 |
40 mg |
|
線性誤差 |
34 mg |
|
靈敏度偏移（測試加載） |
300 mg (10 kg) |
|
最小稱量值/USP |
120 g |
|
最小稱量值 (@ U=1%, 2 sd) |
8 g |
|
穩定時間 |
1 s |
|
外形尺寸 |
|
|
天平外形尺寸（寬 x 長 x 高） |
194 x 366 x 96 mm |
|
秤盤外形尺寸（寬 x 寬 ） |
190 x 223 mm |
|
Balance model |
||||
|
Limit values |
|
|||
|
Maximum capacity; fine range |
4.1 kg; – |
6.1 kg; – |
8.1 kg; – |
10.1 kg; – |
|
Readability; fine range |
100 mg; – |
100 mg; – |
100 mg; – |
100 mg; – |
|
Repeatability 1); fine range |
80 mg; – |
80 mg; – |
80 mg; – |
80 mg; – |
|
Linearity deviation |
60 mg |
60 mg |
100 mg |
100 mg |
|
Sensitivity offset (test weight) |
240 mg (4 kg) |
240 mg (6 kg) |
600 mg (8 kg) |
500 mg (10 kg) |
|
Typical values |
|
|||
|
Repeatability; fine range |
40 mg; – |
40 mg; – |
40 mg; – |
40 mg; – |
|
Linearity deviation |
20 mg |
19 mg |
36 mg |
34 mg |
|
Sensitivity offset (test weight) |
160 mg (4 kg) |
140 mg (6 kg) |
320 mg (8 kg) |
300 mg (10 kg) |
|
Minimum sample weight2); fine range |
120 g; – |
120 g; – |
120 g; – |
120 g; – |
|
Minimum sample weight3); fine range |
8 g; – |
8 g; – |
8 g; – |
8 g; – |
|
Settling time |
0.8 s |
0.8 s |
1 s |
1 s |
|
Balance dimensions (WxDxH) |
194x366x96 mm |
|||
|
Weighing pan dimensions (WxD) |
190x223 mm |
|||
|
Balance model |
|||||
|
Limit values |
|
||||
|
Maximum capacity; fine range |
210 g; – |
410 g; – |
610 g; – |
610 g; 120 g |
1010 g; – |
|
Readability; fine range |
1 mg; – |
1 mg; – |
1 mg; – |
10 mg; 1 mg |
1 mg; – |
|
Repeatability 1); fine range |
0.9 mg; – |
0.9 mg; – |
0.9 mg; – |
6 mg; 1 mg |
0.8 mg; – |
|
Linearity deviation |
2 mg |
2 mg |
2 mg |
6 mg |
2 mg |
|
Sensitivity offset (test weight) |
5 mg (200 g) |
6 mg (400 g) |
4.5mg (600 g) |
9 mg (600 g) |
5 mg (1000 g) |
|
Typical values |
|
||||
|
Repeatability; fine range |
0.5 mg; – |
0.5 mg; – |
0.5 mg; – |
4 mg; 0.6 mg |
0.4 mg; – |
|
Linearity deviation |
0.7 mg |
0.7 mg |
0.7 mg |
0.7 mg |
0.7 mg |
|
Sensitivity offset (test weight) |
3.2mg (200 g) |
3.2mg (400 g) |
3 mg (600 g) |
6 mg (600 g) |
3 mg (1000 g) |
|
Minimum sample weight2); fine range |
1.5 g; – |
1.5 g; – |
1.5 g; – |
12 g; 1.8 g |
1.2 g; – |
|
Minimum sample weight3); fine range |
100 mg; – |
100 mg; – |
100 mg; – |
800 mg; 120 mg |
80 mg; – |
|
Settling time |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
|
Balance dimensions (WxDxH) |
198x366x276 mm |
||||
|
Weighing pan dimensions (WxD) |
127x127 mm |
||||
|
Balance model |
||||||
|
Limit values |
|
|||||
|
Maximum capacity; fine range |
810 g; – |
2.1 kg; – |
4.1 kg; – |
4.1 kg; 0.8 kg |
6.1 kg; – |
6.1 kg; 1.2 kg |
|
Readability; fine range |
10 mg; – |
10 mg; – |
10 mg; – |
100mg;10 mg |
10 mg; – |
100mg;10 mg |
|
Repeatability 1); fine range |
8 mg; – |
8 mg; – |
8 mg; – |
60 mg; 8 mg |
8 mg; – |
60 mg; 8 mg |
|
Linearity deviation |
20 mg |
20 mg |
20 mg |
60 mg |
20 mg |
60 mg |
|
Sensitivity offset (test weight) |
60 mg (800 g) |
50 mg (2 kg) |
60 mg (4 kg) |
60 mg (4 kg) |
60 mg (6 kg) |
150 mg (6 kg) |
|
Typical values |
|
|||||
|
Repeatability; fine range |
4 mg; – |
4 mg; – |
4 mg; – |
40 mg; 4 mg |
4 mg; – |
40 mg; 4 mg |
|
Linearity deviation |
7 mg |
7 mg |
7 mg |
7 mg |
7 mg |
7 mg |
|
Sensitivity offset (test weight) |
32 mg (800 g) |
32 mg (2 kg) |
32 mg (4 kg) |
32 mg (4 kg) |
30 mg (6 kg) |
30 mg (6 kg) |
|
Minimum sample weight2); fine range |
12 g; – |
12 g; – |
12 g; – |
120 g; 12 g |
12 g; – |
120 g; 12 g |
|
Minimum sample weight3); fine range |
800 mg; – |
800 mg; – |
800 mg; – |
8 g; 0.8 g |
800 mg; – |
8 g; 0.8 g |
|
Settling time |
1.2 s |
1.2 s |
1.2 s |
1.2 s |
1.2 s |
1.2 s |
|
Balance dimensions (WxDxH) |
194x366x96 mm |
|||||
|
Weighing pan dimensions (WxD) |
170x205 mm |
|||||
|
產品 |
最大稱量范圍 |
可讀性 |
重復性 |
秤盤尺寸 |
|
XS203S 精密天平 |
210 g |
1 mg |
0.9 mg |
127 x 127 mm (W x D) |
|
XS403S 精密天平 |
410 g |
1 mg |
0.9 mg |
127 x 127 mm (W x D) |
|
XS603S 精密天平 |
610 g |
1 mg |
0.9 mg |
127 x 127 mm (W x D) |
|
XS1003S 精密天平 |
1010 g |
1 mg |
0.8 mg |
127 x 127 mm (W x D) |
|
XS603S DR 精密天平 |
120 g / 610 g |
1 mg / 10 mg |
6 mg |
127 x 127 mm (W x D) |
|
XS2002S 精密天平 |
2100 g |
10 mg |
8 mg |
170 x 205 mm (W x D) |
|
XS4002S 精密天平 |
4100 g |
10 mg |
8 mg |
170 x 205 mm (W x D) |
|
XS4002S DR 精密天平 |
800 g / 4100 g |
10 mg / 100 mg |
60 mg |
170 x 205 mm (W x D) |
|
XS6002S 精密天平 |
6100 g |
10 mg |
8 mg |
170 x 205 mm (W x D) |
|
XS6002S DR 精密天平 |
1200 g / 6100 g |
10 mg / 100 mg |
60 mg |
170 x 205 mm (W x D) |
|
XS802S 精密天平 |
810 g |
10 mg |
8 mg |
170 x 205 mm (W x D) |
|
XS4001S 精密天平 |
4100 g |
100 mg |
80 mg |
190 x 223 mm (W x D) |
|
XS6001S 精密天平 |
6100 g |
100 mg |
80 mg |
190 x 223 mm (W x D) |
|
XS8001S 精密天平 |
8100 g |
100 mg |
80 mg |
190 x 223 mm (W x D) |
|
XS10001S 精密天平 |
10100 g |
100 mg |
80 mg |
190 x 223 mm (W x D) |
|
XS8001L 精密天平 |
8100 g |
0.1 g |
80 mg |
280 x 360 mm (W x D) |
|
XS16001L 精密天平 |
16100 g |
0.1 g |
80 mg |
280 x 360 mm (W x D) |
|
XS32001L 精密天平 |
32100 g |
0.1 g |
80 mg |
280 x 360 mm (W x D) |
|
XS32001L DR 精密天平 |
6400 g / 32100 g |
0.1 g / 1 g |
0.6 g |
280 x 360 mm (W x D) |
|
XS16000L 精密天平 |
16100 g |
1 g |
0.6 g |
280 x 360 mm (W x D) |
|
XS32000L 精密天平 |
32100 g |
1 g |
0.6 g |
280 x 360 mm (W x D) |
