生產廠家：H|上海黃海藥檢

參考價格：37680

詢價：加入詢價車

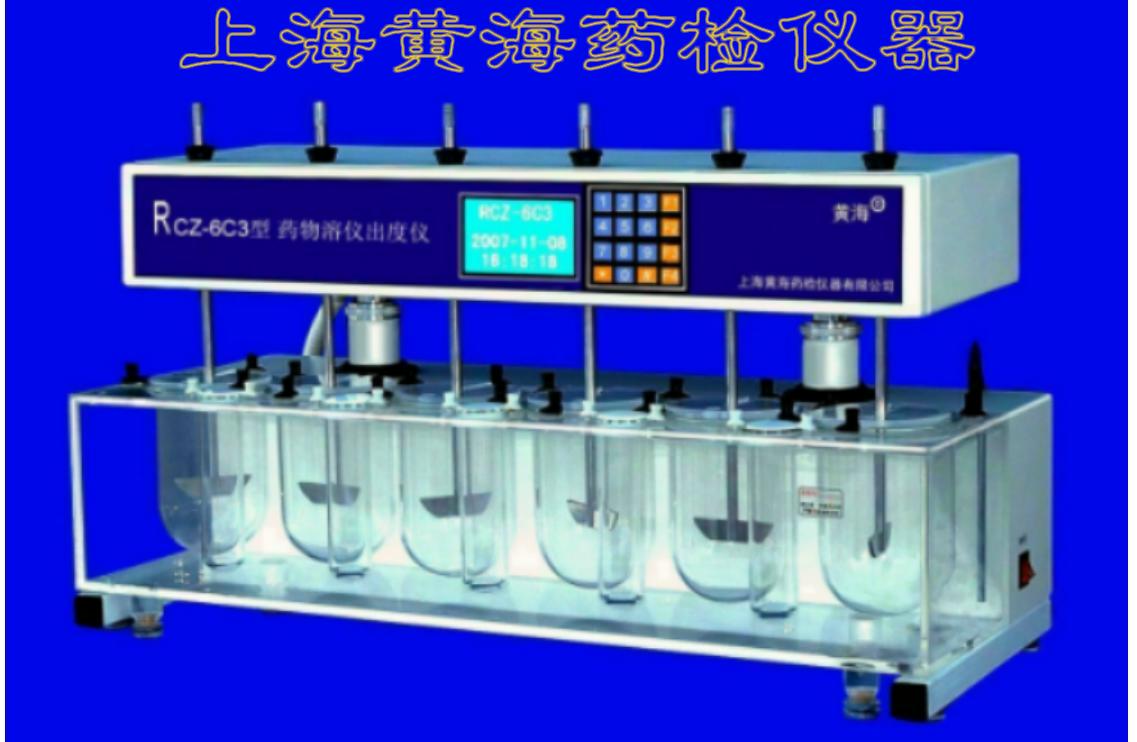

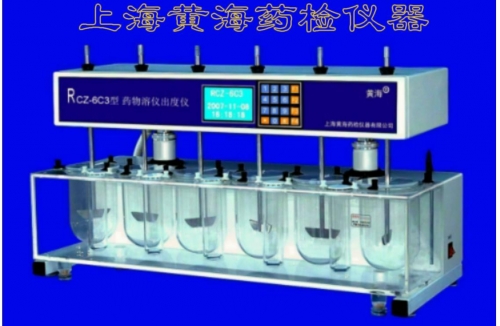

RCZ-6C3智能溶出試驗儀是在RCZ-6C2基礎上總結吸取多年來生產溶出儀的成功經驗的基礎上,采用先進的微電腦技術和單片機元器件研制開發的一種實用新型藥物溶出儀,技術指標符合中國藥典的要求。

性能特點
○可安裝6個藍桿或漿桿。
○可安裝6個溶出杯,5個補液杯。
○采用中文液晶屏人機界面友好,操作簡單、方便。
○主機工作參數可預置并自動儲存,下次開機無須重復
設置。
○轉速控制采用細分電源驅動步進電機方式,轉速準確,
運行平穩,能耗低。
○恒溫水浴采用內置PT1000傳感器,軟件運用PID
方式,升溫快,精度高,可方便的用軟件校正偏差。
○定時功能顯示當前取樣點時間,累計總時間,取樣點數。
同的取樣周期,倒計時
○具有自檢功能和自動保護功能, 給出多種故障信號。
○可外接微型打印機功能。
○具有優盤儲存功能,將實驗數據保留,以便查看。
○芯片程序可隨時升級。
性能指標

○攪拌槳擺動幅度：≤0.5㎜
○轉藍擺動幅度：1≤㎜
○調速范圍:25－250轉/分
○轉速分辯率:1轉/分
○穩速誤差: ≤±1%
○調溫范圍:10(室溫)－45℃
○溫度分辯率:0.01℃
○控溫誤差: ≤±0.05℃
○計時累計時間:最長0－5999分鐘,倒計時
○取樣周期時間:最多10個不同的取樣周期,倒計時 ○取樣周期的時間: 最長0－5999分鐘,倒計時
○電源功率:AC220V±10%,50Hz,1250W
○工作環境條件:溫度5—40℃,相對濕度≤80%HR

RCZ-6C3 dissolution tester, also known as the release of Instrument, in accordance with the "Chinese Pharmacopoeia 2005 version " standard design from a new generation of smart drugs dissolution device, which have double-column lifting mechanical transmission structure with stable and reliable performance. its circuit uses international advanced pre-program chip. it is an internationally advanced level of drug dissolution instrument for laboratories of drugs testing department, hospital schools, scientific research departments and other pharmaceutical company.
The main technical parameters:
Cup Number 6 unit
Dissolution cup volume 1000ml
The range of temperature control 30-40℃
Accuracy of temperature control ≤±0.05 ℃
The range of adjustable speed 20-250 rpm
The range of stable speed ≤±1%
The range of time control 1 min—99 hour 59 min
Preset of the time single segment or multi-segments ( max. up to 10 segments)
Rotation shaft coaxial tolerance ±1.0 mm
Working tolerance of Brei ±0.5mm
The coaxial tolerance of Rotation shaft VS Dissolution cup ≤2 mm
