生產廠家：H|上海黃海藥檢

參考價格：29800

詢價：加入詢價車

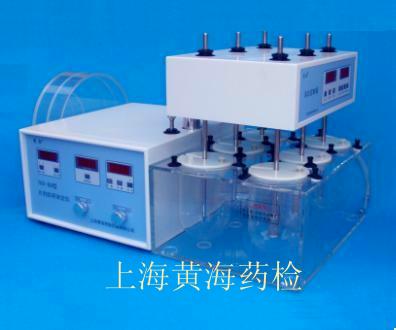

78X-6A型片劑四用測定儀是我公司在原78X-2型片劑四用測定儀基礎上創新設計的產品，該產品技術指標均符合《中國藥典2005年》版規定。是比較理想的藥檢測試儀器。

主要技術規格
1． 崩解部分：
吊籃上下移動距離 55±2mm
吊籃上下往復次數 30~32次/分
平底燒杯容積 1000ml
平底燒杯數量： 2只
杯內水溫 37± 0.3 ℃
吊籃上升籃網至液面距離 25mm
吊籃下降籃網至杯底距離 25mm
2． 溶出部分：
轉速 25～200r.p.m
轉速精度 ±1％
轉籃旋轉擺動幅度 ≤±1mm
漿葉旋轉擺動幅度 ≤±1mm
球底燒杯容積 1000ml
球底燒杯數量 6只
3．脆碎部分：
輪鼓直徑： ?286±0.20mm
輪鼓深： 39±0.30mm
輪鼓數量： 2只
轉速： 25轉/分、100轉停機

4． 硬度部分
被測藥片最大直徑 25mm
最大測試壓力 200N
測試精度 5N

78X-6A four functions tablet tester is a new innovate designed production which is based on former model 78X-2 four functions tablet tester. All the tester technical indicators are in line with the "Chinese Pharmacopoeia 2005" version of the provision. It is an ideal drug testing equipment.
78X Series tablet tester is the best testing equipment for research units, universities, drug checking department and pharmaceutical company.

The main technical specification：
1. the part of disintegration
the volume of flat-bottomed beaker 1000ml
the number of flat-bottomed beaker 2 pieces

2. the part of dissolution
The speed of rotation 25-200 rpm
The accuracy of rotary speed ±1%
The volume of spherical support beaker 1000 ml
The number of spherical support beaker 6 pieces


3. the part of friability
The Diameter of brake drum ?286±0.20mm
The depth of brake drum 39±0.30mm
The number of brake drum 2 pieces The rotary speed
The rotary speed 25r/min. 100r/min will be stopped


4. the part of hardness
the max. Diameter of testing drug 25mm
the max. testing pressure 200N
the testing accuracy 5N
