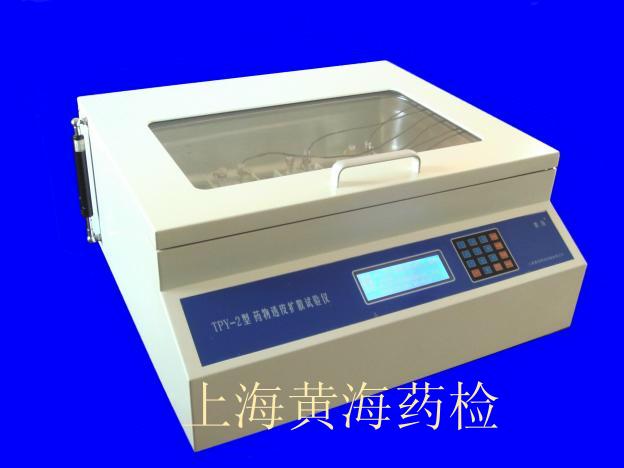

TPY-2智能透皮擴散試驗儀在總結吸取多年來生產透皮儀成功經驗的基礎上, 研制開發出一種新型實用的藥物透皮儀在溫控系統方面，采用獨特的熱傳導方式，確保試驗容器在長時間恒溫工作環境中，達到≤±0.1的精度。(實驗容器屬干濕兩用型)目前該項技術已申報國家專利。

性能特點：
○可安裝6個臥式擴散池。
○可安裝12個立式擴散池。
○實驗容器可選擇注水加熱方式，也可選擇空氣導熱
○采用中文液晶屏人機界面友好,操作簡單、方便。
○主機工作參數可預置并自動儲存,下次開機無須 設置。
○轉速控制采用細分電源驅動步進電機方式,轉速準確。
○恒溫控制采用內置PT1000傳感器,軟件運用PID
方式,升溫快,精度高,可方便的用軟件校正偏差。
○定時功能顯示當前取樣點時間,累計總時間,取樣點數。
○具有自檢功能和自動保護功能, 給出多種故障信號。
○可外接微型打印機功能。
○具有優盤儲存功能,將實驗數據保留,以便查看。

性能指標：
○7.5±0.1 ml
○6.5±0.1 ml
○調速范圍:60－1000轉/分
○轉速分辯率:1轉/分
○穩速誤差: ≤±0.2%
○調溫范圍:10(室溫)－45℃
○溫度分辯率:0.01℃
○控溫誤差: ≤±0.05℃
○取樣周期時間:最多10個不同的取樣周期,倒計時
○取樣周期的時間: 最長0－5999分鐘,倒計時
○電源功率:AC220V±10%,50Hz,800W
○工作環境條件:溫度5—40℃,相對濕度≤80%HR

Product Desc ription in Brief
TPY-2 drug percutaneous permeability diffusion tester, It was our company together with pharmaceutical preparations National Engineering Research Center to joint research and development one of new production. The main machine is used by LCD with Chinese&English to display menu, it is simple and convenient to operate, and have the functions of print, USB storage. The tester can be used vertical and horizontal diffusion cells, in the dry constant temperature container, under the working state of magnetic stirring evenly, through the slow infiltration of animal skin, it is objectively reappearanced the pharmacology process of the preparation ‘s infiltrate rate of speed and degree in the setting solvent. The hereinbefore checking way is the current testing method in domestic. The tester used six sandwich layer into conduction of heat liquid, the outer layer exhaust the air to ensure the box keep a certain degree of vacuum, so that the tester’s indicator will be more stable and reliable. The tester is the best testing percutaneous permeability diffusion machine in pharmaceutical and cosmetic industry based on its Magnetic stirring with small niose and uniform speed , high precision temperature control and generous beautiful shape.

The main technical parameters:
The number of vertical cup 12 pieces
The volume of receiving pool 6.5ml
The number of horizontal cup 6 sets
The volume of receiving pool 7.5ml ×2
The range of temperature control 30-45 ℃
The accuracy of temperature control ＜±0.05℃
The scope of stirring speed adjustable 100-1000 rpm
The tolerance of stable speed ＜±0.2%
